Thermalglass explorer user manual

Table of Content

Notice of compliance Package Content Technical Parameters Device Properties User Input Table Charging Connecting Your Mobile Connect To Wi-Fi Basic Settings Palette Settings Gallery Symbol Legend Maintenance Troubleshooting Warranty Information Disclaimer

Warning! Important Safety Precautions! Read Before First Use!

Do not use and/or charge the device in/under water or in rainy weather!
Do not expose the device to strong physical impacts, do not drop the device!
Do not try to remove the batteries yourself! If there is any problem with the batteries, please contact your local service center: thermal.glass/contact
Always put on the glasses from the front with caution to protect your eyes!
If you experience serious overheating or electric malfunction with the device, stop using it by removing it from your head immediately, turn it off and contact your local service center: thermal.glass/contact. Please note that while working at confined spaces, airflow around the device maybe reduced, which may cause increased temperature of the device!
Do not expose the device to heavy dust and direct water!
Do not use the device outside the environmental temperature of –10°C to +40°C!
When charging the device, do not charge it outside the ambient temperatures of 0°C to +40°C!
Do not store the device for long time outside the ambient temperatures of –10°C to +30°C!
Do not store the device for prolonged times in a fully charged condition!
Keep the device out of reach of children and pets!
Do not disassemble or attempt to repair the device yourself. Refer servicing to qualified personnel.
Use the device in accordance with local regulations and guidelines regarding privacy and data usage.
Always store the device in the dedicated ThermalGlass case! Make sure to completely turn off the device before putting it in the case!
Never insert anything metallic into the open parts of the device!
Do not look into direct sunlight or welding light!

To reduce the risk of eye, neck and shoulder strain, consider keeping regular breaks during the usage of the device!

Notice of compliance

The device complies with the FCC rules, Part 15.

Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

FCC rules: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between equipment and receiver.
Connect the equipment into an outlet on a circuit different from • that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Device overview

Thank you for choosing ThermalGlass! Please read the User Manual carefully to learn everything about your new device. If you have any questions, please visit www.thermal.glass for more information! Enjoy the new reality of vision!

‍

Package Contents

1 ThermalGlass device

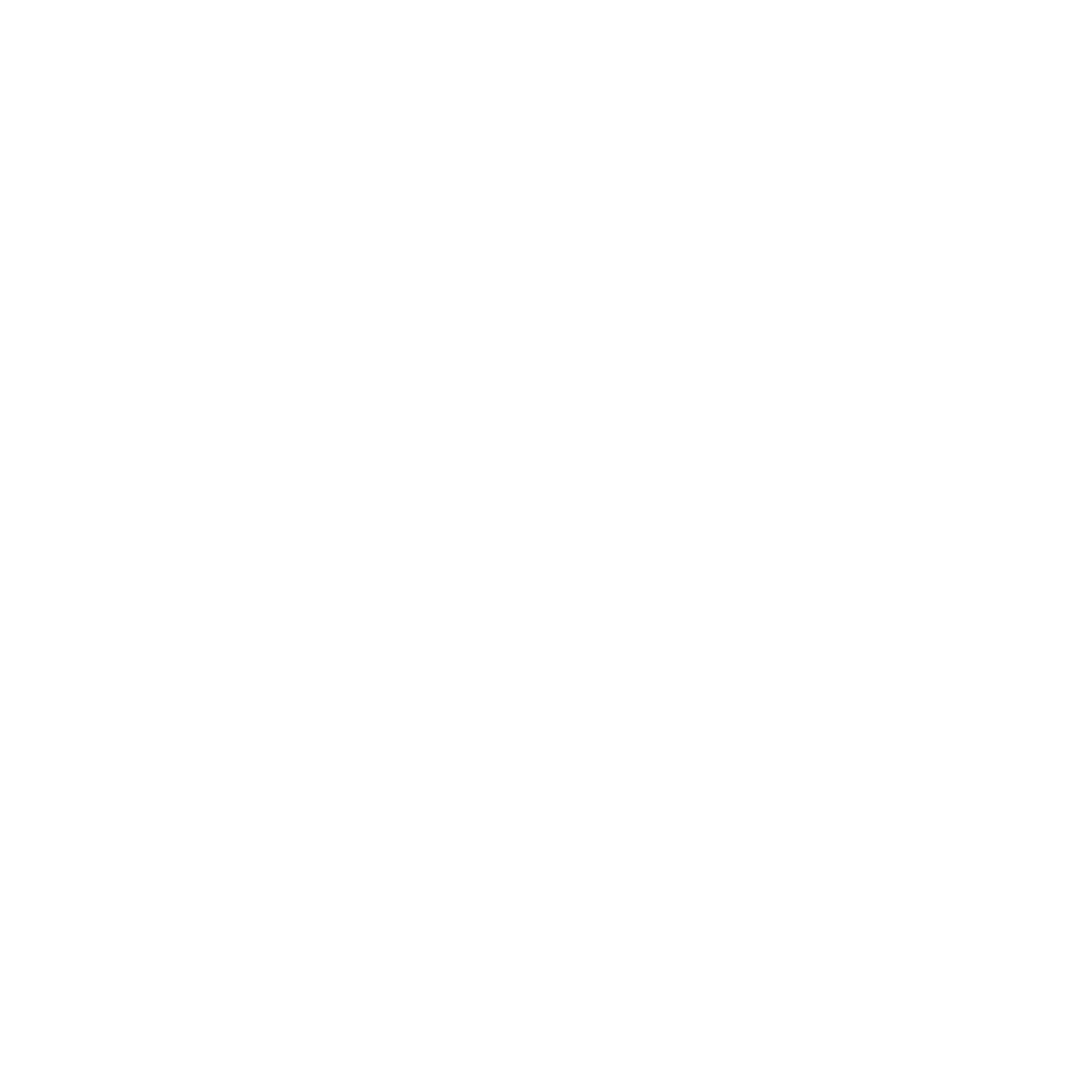

Prescription inserts (optional)
Pouch (optional)
ThermalGlass protector case
Wiping cloth for visor cleaning
Cable

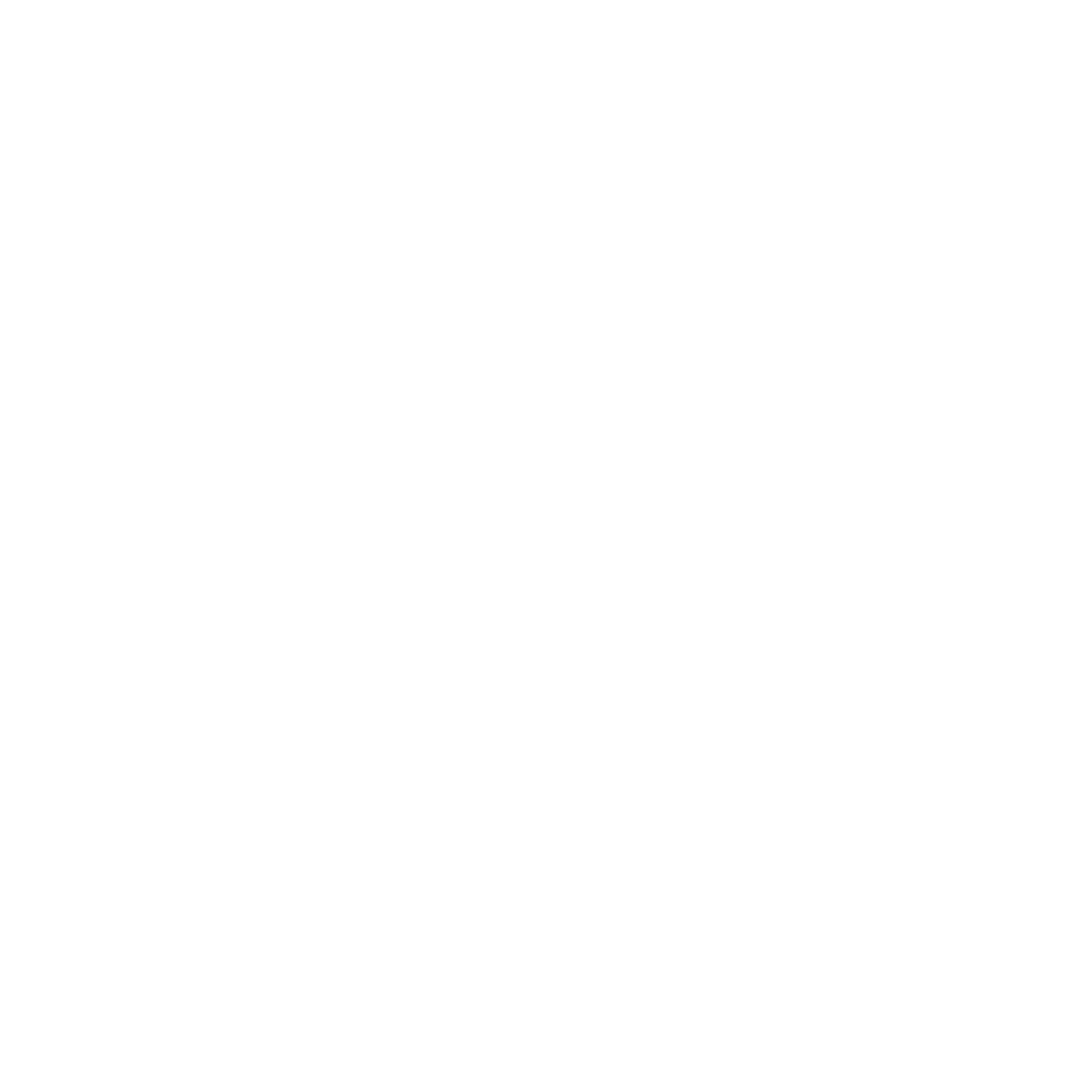

Visor: Clean, Photochromic, Tinted
User manual
Warranty card
Quick-Start guide
Head Strap

Technical Parameters

Thermal camera
Frame rate	Up to 27Hz
Resolution	240 × 320
Microbolometer	Uncooled Vanadium Oxide
Pixel Size	12 µm
Spectral Response	7.8 - 14 Microns
Imaging range	-40°C - 330°C
HFOV	18°
VFOV	24°
RGB camera
Frame rate	30Hz
Resolution	4224 × 3136
Sensor size	1/3.06”
Pixel Size	1.12 µm
EFL	3.81mm, 650nm with IR cut and auto-focus
DFOV	74,4°
HFOV	62,7°
VFOV	48,7°
See-through Display
Resolution	640x480
Brightness	> 2000 nits
Color depth	24-bit color
Configuration	Right eye display
Device
Processor	Qualcomm QCS610 Octa-core processor
RAM	2GB
Storage	32GB
Operating system	Yocto Linux
Language Supported	English
Wireless Connectivity	5G and 2.4GHz Wi-Fi and Bluetooth
Port	USB 3.0 Type-C
Sensors	Ambient light sensor
Power
Battery Capacity	2 × 500mAh
Battery Life	Up to 2 hours
Charging	5-12 V, 1 A
Physical Specifications
Weight	200g
Dimensions	196 × 219 × 50mm
Material	Polycarbonate, Aluminum Alloy
Package Contents
ThermalGlass Device	1 piece
Carrying Case	1 piece
Cable	USB 3.0 Type-C
Cable length	1.2 m
Visor	3 pieces (Clean, Photochromic, Tinted)
Prescription inserts, pouch	1 piece
User manual	1 piece
Warranty card	1 piece
Quick-Start guide	1 piece
Head Strap	1 piece

This product is designed by Holoindustry in Hungary.

Manufactured by Holoindustry Kft.

Device Properties

1. See Trough Display
2. Illumination Sensor
3. Thermal Camera
4. RGB Camera
5. Offset Dial
6. Power Led
7. Power Button
8. Up Button
9. Down Button
10. Type-C Port

User Input Table

Device on/off

Long press Power Button for 2 seconds

Thermal image display on/off

Short press Power Button

Hard reset

Press and hold Power Button for 10 seconds

Bluetooth discoverable

Short press Power Button + Down button simultaneously

Brightness

Press Up Button to increase Brightness

Press Down Button to decrease Brightness

Thermal image alignment

Rotate the Offset Dial to align the heat map with the environment

Charging

To ensure proper charging of the ThermalGlass device, follow these steps:

Connect to Power Source:
- Use the included USB-C charge cable to connect the device to a power source.
‍Charger Mode Confirmation
- Check if the device has entered charger mode. ThermalGlass will automatically enter charger mode when connected to a USB power source. The indicator light on the ThermalGlass will show yellow while charging and turn green once fully charged
Full Charge Recommendation:
- For optimal performance, it is recommended to fully charge the device before use

By followingthese instructions, you can ensure that your ThermalGlass device is properlycharged and ready for use.

Connecting your mobile

To enjoy the full capabilities of your ThermalGlass device, install the ThermalGlass mobile application.

‍

After installing the application, grant the requested permissions on your mobile device. On the first launch, read and accept the Terms of Service. Ensure Bluetooth is enabled on your mobile device to connect whenever you use the application.

On startup, the ThermalGlass automatically activates Bluetooth discoverable mode, indicated by the LED indicator blinking blue.

Open the ThermalGlass mobile application and select “My device”. Search for “ThermalGlass” and tap on it, to start the connection process. After successful pairing, the application's Bluetooth functionalities become accessible.

Base settings

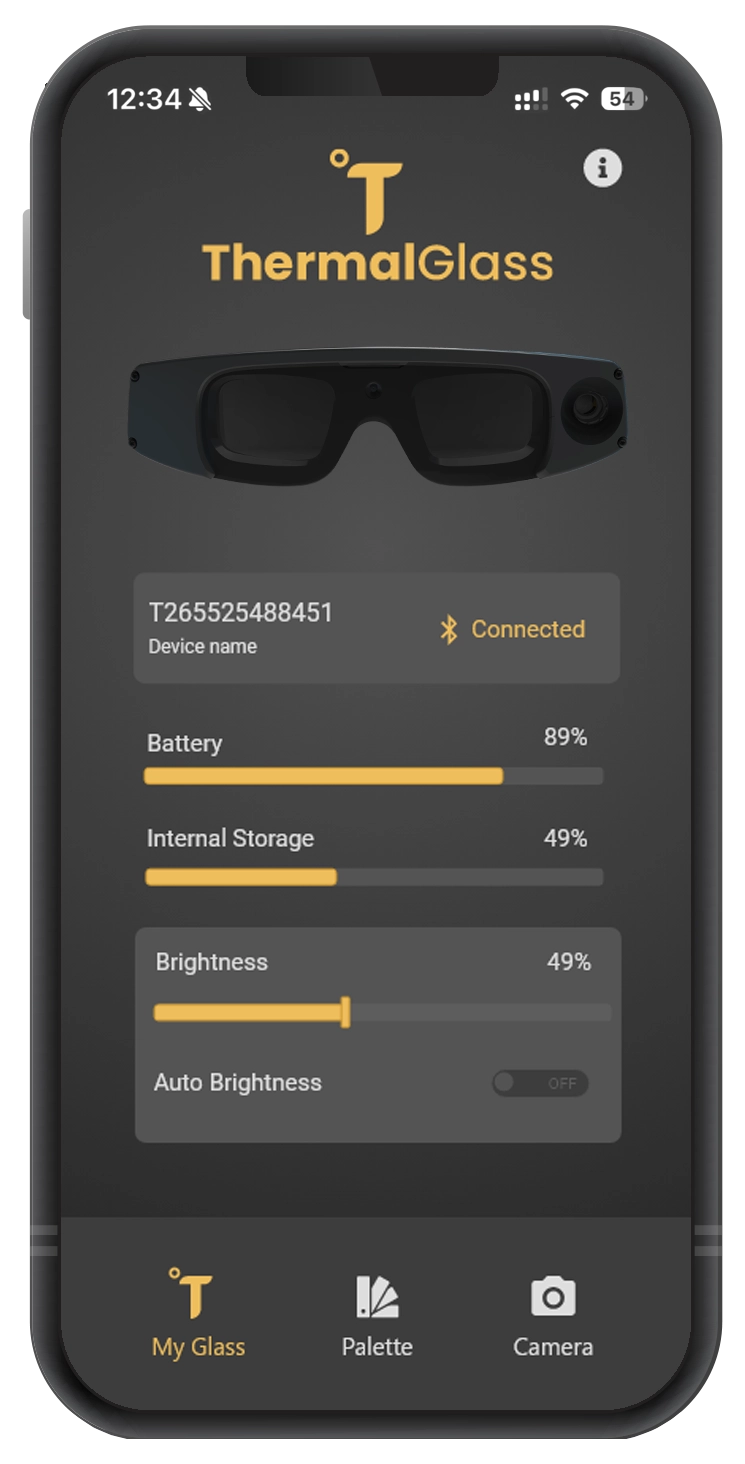

In the “MyGlass” section of the ThermalGlass application, you have full control to finetune your projected image.

The Battery slider displays the live battery status, while the Internal Storage indicator shows the percentage of used storage.

Adjust the Brightness manually or activate Auto Brightness for optimal level.

Enjoy a tailored experience that fits your unique needs.

Palette settings

On the Palette menu you can choose from 7 different palettes for your thermal image visualization depending on the method of use. The 7 palettes are: ,

These palettes were created to meet specific needs in various fields. They ensure that only the necessary information reaches you, without any excess, facilitating data processing and quick response.

Symbol Legend – Device Markings

The following symbols may be engraved on the device or printed on its label. They provide important regulatory, safety, and technical information.

Conformité Européenne (CE) Compliance

Federal Communications Commission (FCC) Compliance

WEEE (Waste Electrical and Electronic Equipment Directive)

Class III equipment

Internal electrical alignment symbol

Power Supply Voltage

Ingress Protection (IP) Rating

Maintenance

DO NOT TRY TO REMOVE THE BATTERIES! Unprofessional handling of the batteries can cause damage to the device of even can affect human health. Do not disassemble or attempt to repair the device yourself. If you have any problems, contact the ThermalGlass customer support team on the following address: support@thermal.glass

Keep the device clean and free from dust and debris.

Keep the device from direct contact with water and liquids.

Avoid exposing the device to extreme temperatures, moisture, or direct sunlight.

Periodically update the mobile application to ensure compatibility and access to the latest features.

For cleaning the visors use only the ThermalGlass visor wiping cloth.

For cleaning the plastic parts use soft cloth or wet wipes (if using wet wipes be especially careful around the USB connector and the buttons).

Troubleshooting

Common issues and solutions:

Not able to switch on

Start charging the product, does the led lights up?
1. NO à Product is in deep drain à Wait 15 minutes, if the led not lights up, send back the product
2. YES à Hard reset, push power button for 5 sec, if it still not switches on send back the product

Not able to switch off

Does the power button work?
1. NO à send back the product
2. YES à Hard reset, push power button for 5 sec, if it is a continuous issue send back the product

Contact customer support for further assistance if needed: thermal.glass/contact

Warranty Information

For warranty information please visit: thermal.glass/warranty

Disclaimer | AR Glasses

The ThermalGlass is a state of the art Augmented Reality (AR) device. AR is an immersive experience and can affect everyone differently. Please read the following disclaimer about how it may affect you.

Motion Sickness

People who are prone to motion sickness have a risk of experiencing discomfort when using Augmented Reality. Do not use when you are sleep deprived, are under the influence of drugs or alcohol, or have digestive problems.

Health

Taking into account the development of children's eyes, the ThermalGlass should be used only in a very limited way by children under 12 years old. Parents please supervise their child when using the AR glasses. If you are sensitive to flashes of light or patterns that may cause epilepsy, or have health concerns about using AR glasses, please consult a doctor before using our product and refrain from using them at this time. If you become dizzy or nauseous during use, remove the AR glasses immediately, sit down, and ask for help.

Pre-existing Medical Conditions

People who have previous medical conditions such as severe headaches, ear-aches, or psychiatric disorders, should see a doctor before using our headsets. Some people may experience seizures triggered by flashing lights or patterns while experiencing augmented reality, even if they have never had a seizure before, or have no history of epilepsy or seizures. Anyone who knows or believes they may have previously experienced a seizure or other symptom linked to an epileptic condition should see a doctor prior to using our headsets.

Use of AR glasses

To avoid accidents, do not walk while wearing the ThermalGlass until you are confident navigating yourself while using it. Do not run! Liability claims for personal injury and property damage due to movement during the use of the ThermalGlass are excluded! The lenses of the AR goggles must not be held directly in the sun, otherwise the respective device may be damaged!

Hygiene

If the ThermalGlass device is used by multiple users, to reduce the possible risk of transmission of infections, the device should be cleaned after use. Please do not use any kind of solvents or liquids while cleaning the projector lens, use only the cleaning cloth included in the package.

Personal injury and property damage

The use and application of the ThermalGlass and the necessary devices (smartphone, powerbank, etc.) is at your own risk. The technology provided is to be handled with due care. Each user is fully liable for all damages and losses caused by him/her while using the provided technology. In the event of damage, Holoindustry does NOT assume any liability for physical, mental and material damages and/or consequential damages resulting from the use of the equipment. Furthermore, Holoindustry assumes no liability in case of improper use of the product or failure to observe the warnings listed above. By actively using (putting on the AR glasses, etc.) the ThermalGlass, you acknowledge the rules of use, confirm that you have understood them, and release Holoindustry from liability for any damages resulting from the use of the ThermalGlass and associated equipment provided.
